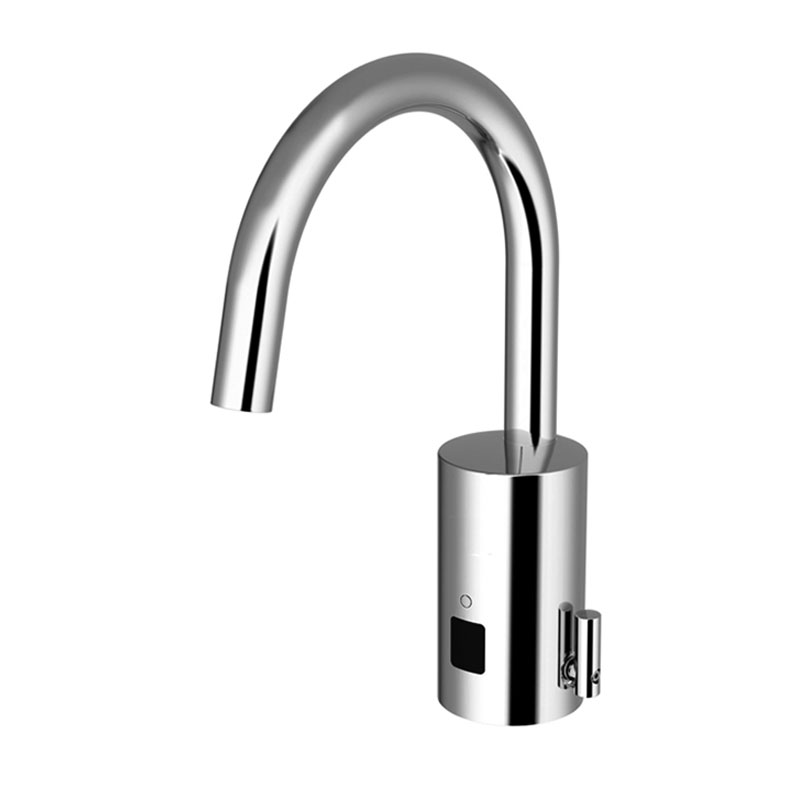

“Touch-free” electronic spout

“Touch-free” electronic spout, fitted with double infrared sensor, solenoid valve, temperature adjustment, adjustable anti-burn protection. Adjustable 12 or 14 hour hygienic rinse function. Supplied with flexible supply hoses resistant to high pressure. Powered by battery - 6V lithium - with life up to 4 years.

• Operating pressure: 0.3 - 10 bar
• Flow rate (approx.): 6 l/min / 1.6 gpm (3 bar)
• Water temperature (max.): 80 °C
• CACHÉ aerator
• Fitted with 350 mm long flexible hoses
• Corner valve connection: G 3/8
• Incorporated filters (0.3 mm mesh)
• Automatic sensor adaptation technology
• Follow-up time: 1 s default (adjustable 0-10 s)
• Continuous water flow and hygienic rinse time: 2 min default (adjustable 0.5-20 min)
• Technical standards: DIN EN 200; CE

Characteristics
CE marking
Colours
Chrome

C1

Materials
Brass Polished
“Touch-free” electronic spout


^
