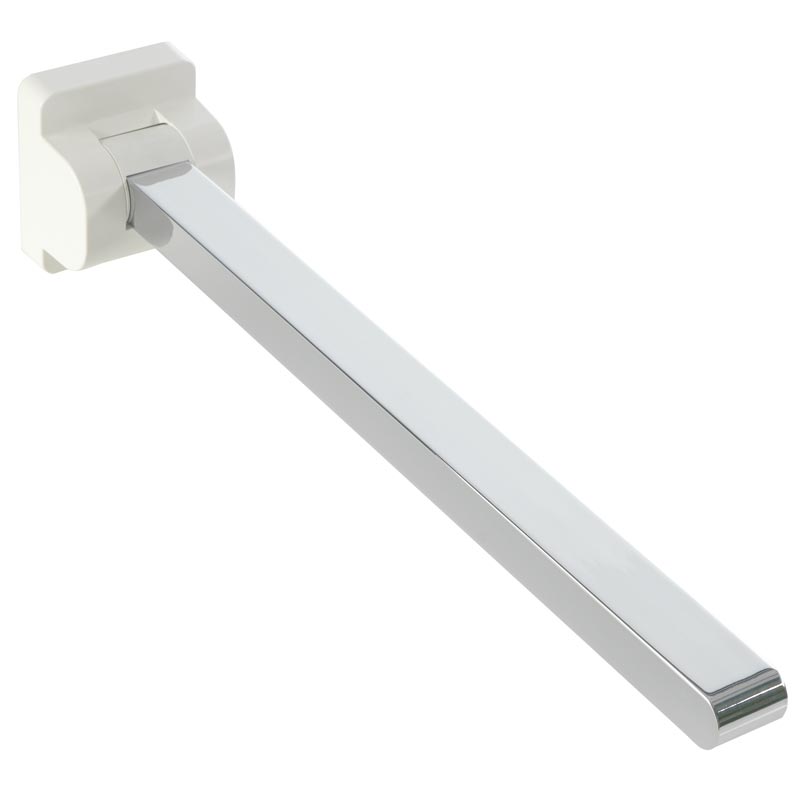

Folding and removable arm

Folding and removable support. Consisting in an arm and aluminium plate system. The plate cover and cylinder of the pivot are in ABS. The elements can have different finishes, which can be combined on request.

• Body in aluminium bar, 30x40 mm.
• Aluminium mounting plate system
• The pivot is equipped with a friction system to control the folding of the bar
• Removable item
• Plate cover in ABS to protect the wall anchorage
• Available finishes: PVD, epoxy polyester powder coating or electrochemical treatment
• The arm can be equipped with an armrest and roll holder
• 150 kg vertical load capacity
• Available as BIM models

Characteristics
Colours	Arm finish	C1 WE DD PB E4 E5 E6 DM
	Flange cover finish	D4 C1 WE PB E4 E5 E6 DM
Materials		Aluminium Matt, Aluminium Polished, ABS Matt
Additional information		The support arm can be chosen independently of the colour of the plate covers. For the price of E4, 45, E6 finishes, please contact us
