Wall fixing kits for light walls

"Wingits" is probably the strongest fastening system for light walls now available
on the market. It is designed in a completely different way from the other similar
fastners and the particular shape guarantees a solid support over time without
risks of releases or loss of resistance to load; it does not require specific
preparations and is installed quickly.





Fixing systems for light walls





One of the most common problems when we have to install a product on light
walls, such as drywall, is the fragility of the wall itself. If they are not
reinforced on the inside back part, where the product has to be installed, special
solutions must be used, such as the chemical dowel or in some cases is better
not to proceed with installation, because of the risk of downfall.





Fixing anchors for light walls





A great solution is offered by Ponte Giulio: probably the most reliable and
strongest fixing system presently on the Market for the mounting of grab bars
and rails on light walls.














Standard stud wall fixing for light walls

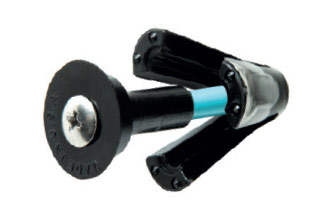

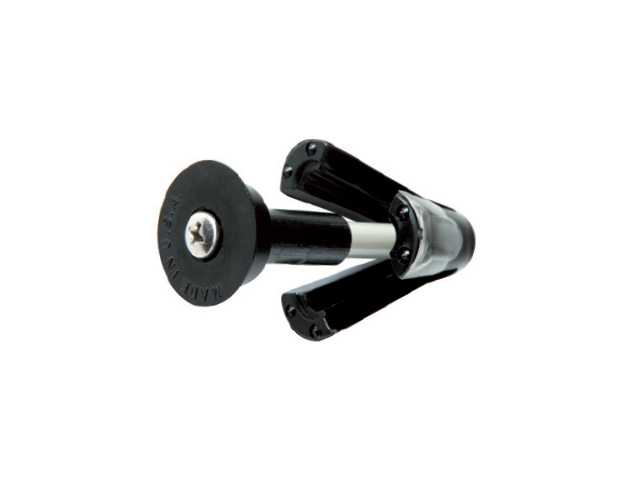

Standard stud wall fixing - Y96SES65

Standard stud wall fixing has thousands of uses for easy installation
of bath accessories.

Uses 8-32 Stainless Steel screws.

Eliminates the need for structural blocking, never loosens and rated up
to 136 kilograms.

A hole of 19 mm diameter is required for installation.

Designed for 50 x 76 or larger hollow walls and wall substrates from 6
- 19 mm. thick.



WATCH THE VIDEO

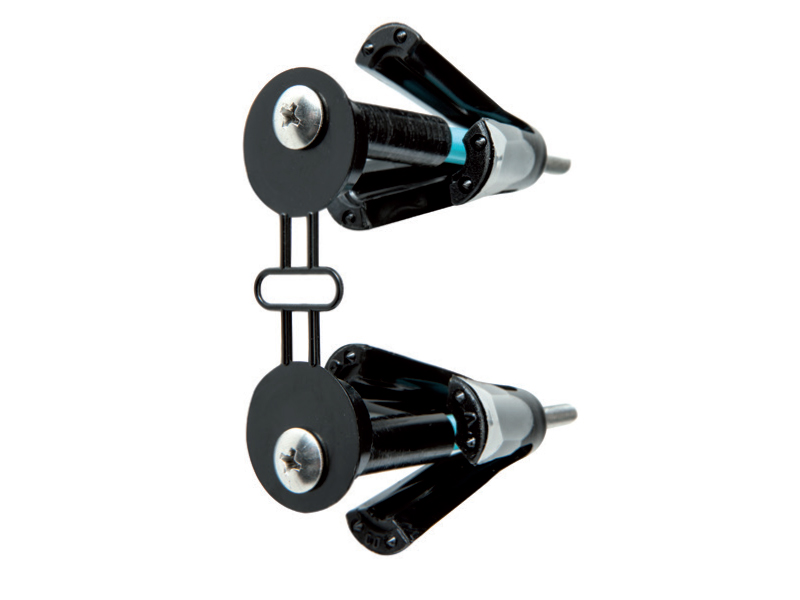

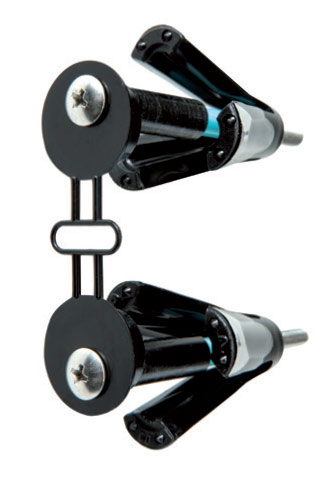

engineered wall anchor for light walls   Structurally engineered wall anchor - Y96SES56

Structurally engineered wall anchor fit for the installation of grab rails.


Uses two 8-32 Stainless Steel screws.

Eliminates the need for structural blocking,never loosens and rated up to
250 kilograms.

A hole of 19 mm diameter is required for installation.

Designed for 50x76 or larger hollow walls and wall substrates from 6 to
19 mm.thick.



WATCH THE VIDEO

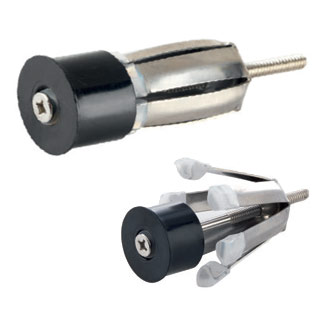

Structural stainless steel fixing for light walls   Structural stainless steel fixing - Y96SES68


Structural stainless steel fixing fit for the installation of handles.

The body and screws are made of stainless steel 18/8.

Eliminates the need for structural blocking, never loosens and rated up
to 360 kilograms.

A hole of 31 mm diameter is required for installation.

Designed for 50 x 110 or larger hollow walls and wall substrates from 38
- 63 mm. thick.



WATCH THE VIDEO







WHY CHOOSING THEM?




  • Because they eliminate the need to reinforce the walls

  • Never loosen

  • They are waterproof and fire resistant

  • They are suitable for the installation of all accessories and Ponte Giulio grab bars and rails.

  • Internationally patented

  • Used by every major hotel chains and senior homes throughout North America.
